AUTOMATIC DOOR SYSTEM
Product range, for your unique needs to provide the best solution. modular
components to ensure superior performance of automatic door operation.
| Cost-effective |
Automatic sliding door system with functional and economic advantages, cost-effective to meet the needs of your high standards, with a distinct advantage. |
High reliability |
Automatic sliding door through 500 million on the sample test. |
Easy installation |
All of the electrical control module connected by high-performance connectors to ensure the safety wiring and
installation convenience. |
Emergency |
Case of power outages can be manually opened the door, such as backup power system can also use fire
or smoke detectors and fire access, emergency, can automatically open the door for escape. |
|
|
|
Technical Parameters
| Model |

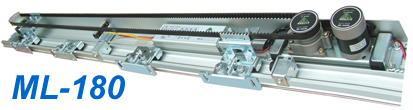

ML-180 |
Suitable For?Weight |
Max? 180Kg×1 |
Door?width |
DW＝350~2000mm |
Clearance?width of?the structure |
W＝700~4100mm |
| Installation |
Surface-mount?(closed-mounted ) |
|
For basic operation |
Detection switch connected→Doors open→Slow→Brake→Stop (door still open)→
Doors closed→Brake→Slow→Push→Squeeze stop(door closed) |
Opening speed |
350~750mm/s (Adjustable) |
Closing speed |
250~650mm/s (Adjustable) |
Micro-speed |
100~350mm/s (Adjustable) |
Braking force |
Standard / Weak |
Opening hours |
0~60s (Adjustable) |
The maximum distance the door |
10m |
Manual opening force |
MAX 4.5Kg |
Ambient temperature |
-40℃~+50℃ |
Noise level |
MAX45db |
Power supply voltage |
AC180V~250V(AC15~22V,DC18V~30V) |
|
|

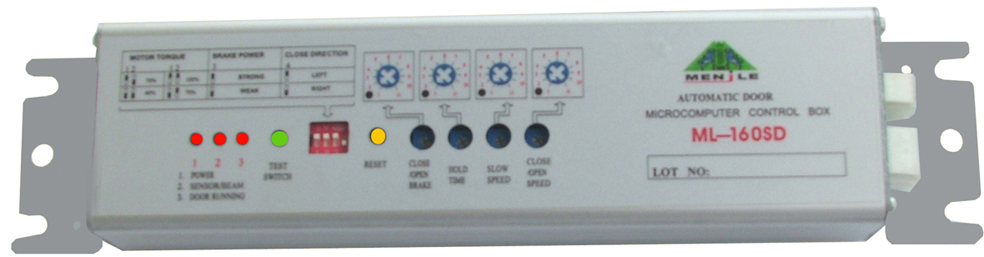

32-bit micro controller |
|
 |
Controller uses the automatic doors of the most
advanced of today's 32-bit computer control
system that provides maximum security to
customers. In case of strong wind resistance, the
controller can automatically increase the motor
power to ensure the smooth running of automatic
doors. and has a reset function. |
|
|
|
|
