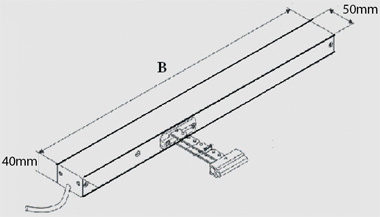

| Stroke |
B
24V |
B
230V |
| 250 |
390 |
508 |
| 350 |
421 |
560 |
| 500 |
496 |
635 |
| 600 |
546 |
685 |
| 700 |
596 |
735 |
| 800 |
646 |
785 |
| 1000 |
746 |
885 |
Technical Data
|
| Type |
CA 38-K |
CA 38 |
| Power Supply |
230VAC +(-)10% |
24V DC +(-)15% |
| Frequency |
50Hz |
/ |
| Push-Pull Force |
400N |
400N-600N |
| Speed |
10mm/S |
10mm/S |
| Current Absorption |
0.45A |
1A |
| Protection Class |
IP 50 |
IP 56 |
| Range of Temp. |
-5'C - +74'C |
-5'C - +74'C |
| Housing |
Aluminium Natural Anodized |
Example for Usage |
|
| |

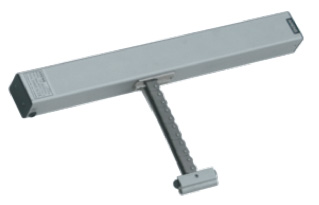

CHAIN ACTUATOR
CA 38 CHAIN OPENER SYSTEM
SPECIFICATIONS
|
| - |
For all types of windows |
| - |
Quick and easy install |
| - |
Double link stainless steel chain for heavy windows and roof windows |
| - |
Supplied with 1.5m cable and pivoting brackets |
| - |
Stroke lengths up to 1000mm |
| - |
Low consumption |
| - |
Maintenance Free |
| - |
Stainless Steel |
|
Chain drive "CA38" is applicable as electric remote control for most
common type of window. Operating at 230VAC or 24VDC voltage
Outifitted with electronic limit switch for opening and closing. Electronic
Stop in the intermediate positions in case of overload. Quick release
pin in case power fail which can be connected in parallel. Colors
Available, Anodized Silver and Powder Coating White. |
|
|
