SMOKE VENT CONTROLLER
 |
 |

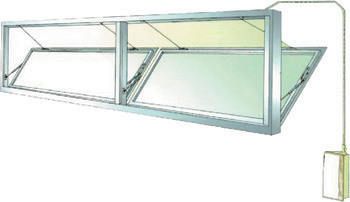

Smoke Vent Expore Mounted Type |

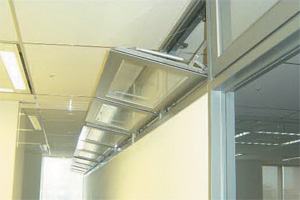

Smoke Vent Conceal Type |
 |

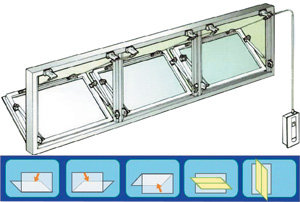

Introductions:
The smoke vent will fully open
immediately by pressing the
"One Touch" Button.
The Vent requires easy operation.
Turn the handle manually to close.
|
 |

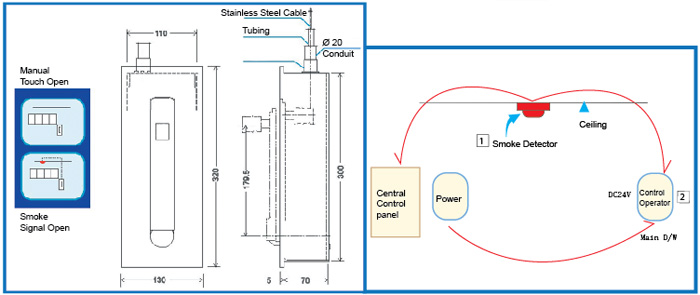

SPECIFICATION
Specialities: (Inner design) Surface:
The Metal Rotation Handle and surface are ensemble inside the control box for easy control and function. One direction operation with single detachable gear. When the window opening, the handle without spinning together.
Fast transfer movement:
internal kit reduce package to increase power by transfering. The metal rotation handle specially design to prevent handle to encounter and scratches. The D/W operator including smoke detector connections for central monitor system.
GM-104 Smoke Vent Control Panel
 |

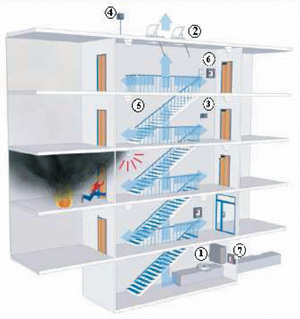

Principle of functions
1) Control panel
2) Actuators
3) Internal detector
4) External sensor
5) Smoke detection
6) Emergency button
7) Fire brigade button
|

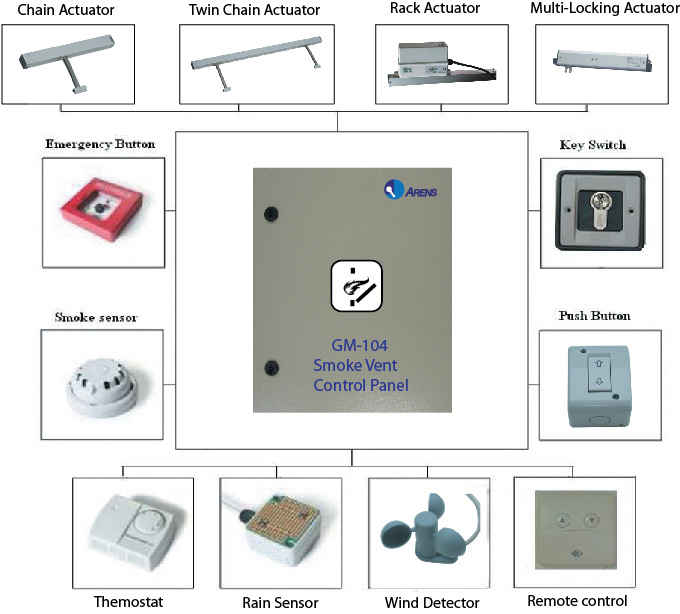

GM-104 Smoke Vent Controller
|
The GM-104 control panel provided with battery back up system, allows to control the windows opening and closing by 24Vdc actuators.
Opening and closing operating can be controlled as follows:
|
| - |
Emergency controlled by a smoke detector or an emergency button. |
| - |
Weather conditions, controlled by rain detector, anemometer, thermostat sensor. |
| - |
Daily ventilation by push button or key switch. |
| - |
Obviously the emergency command has priority over ventilation. (Manual opening and closing are disabled.) |
| - |
The actuators are fed directly by a power supply unit. The batteries are use in case of power supply failure only. |
|
 |
Technical Data
The Voltage supply: 230VAC
Output : 24VDC
Nominal Current: 8A/16A
Expansion model GM-104 SU provided with booster batteries and controlled directly by the GM-104 control panel, allows to improve the number of actuators.
The GM-104 electric system for smoke and heat extraction are extremely versatile:
allows multi windows control or the smoke and heat extraction in case of fire, always enabling daily ventilation. A wide range of control panels detectors, electric chain actuators, rack actuators. Electric multi-locking actuators or any other accessory is available for the system installation.
| Model |
Power |
Max Current |
Output Current
of Each Group |
Dimensions |
Protection |
|
| GM104-SU8 |
250W |
8A |
8A (1 Group) |
500 x 400 x 150 |
IP54 |
| GM104-SU16 |
450W |
16A |
16A (1 Group) |
500 x 400 x 150 |
IP54 |
| GM104-SU32 |
850W |
32A |
16A (2 Group) |
500 x 400 x 150 |
IP54 |
| GM104-SU64 |
1650W |
64A |
16A (4 Group) |
600 x 600 x 250 |
IP54 |
| GM104-SU128 |
3250W |
128A |
16A (8 Group) |
1000 x 800 x 250 |
IP54 |
|
|
|
