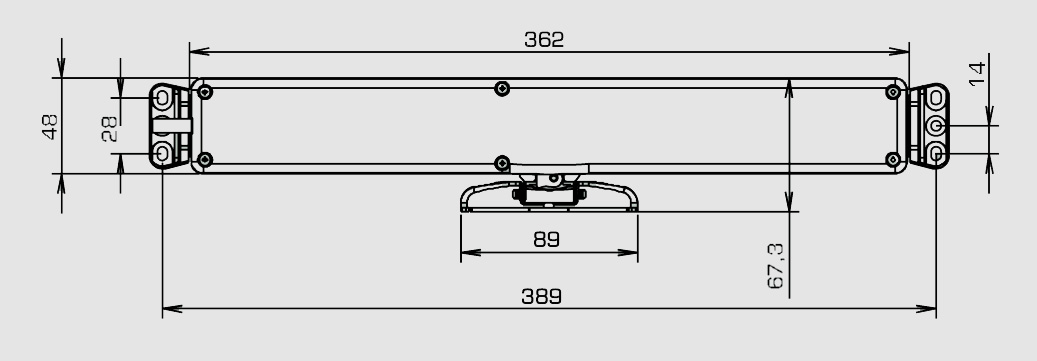

| Stroke |
B
24V |
B
230V |
| 350 |
421 |
560 |
| 500 |
496 |
635 |
| 600 |
546 |
685 |
| 700 |
596 |
735 |
Technical Data
|
| Type |
C20/230 |
C20/24 |
| Power Supply |
230V-50Hz |
21~28VDC |
| Rated Current |
0.12A |
0.43A |
| Push-Pull Force |
300N-200N |
| Speed |
8mm/S |
7mm/S |
| Current Absorption |
0.45A |
1A |
| Protection Class |
IP 30 |
| Range of Temp. |
-5'C - +50'C |
-5'C - +50'C |
| Housing |
Aluminium Natural Anodized |
C20 Catalogue |
|
| |

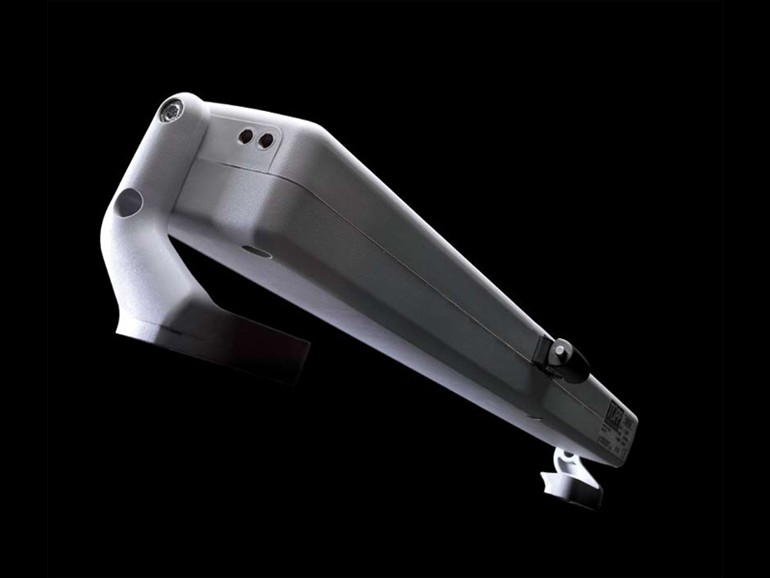

CHAIN ACTUATOR
TOPP C20 CHAIN OPENER SYSTEM
SPECIFICATIONS
|
| - |
For all types of windows |
| - |
Quick and easy install |
| - |
Double link stainless steel chain for heavy windows and roof windows |
| - |
Supplied with 1.5m cable and pivoting brackets |
| - |
Stroke lengths up to 1000mm |
| - |
Low consumption |
| - |
Maintenance Free |
| - |
Stainless Steel |
|
Double?chain?design, the?chain?has a strong?weight-bearing?capacity;
Drive?a compact?space?to meet the?maximum?stroke,?designed to?track?the chain?of international?patents;
Stroke?end of the automatic?power-off?design,?to avoid shutting down?the process offoreign?object damage?and?damage?caused by?installation?of the?deviation;
When?two?push?points, 230V?and?24V?can?choose?double?push. |
|
|
